Computerised Tensile Tester

Types of gripers for Universal Testing Machine

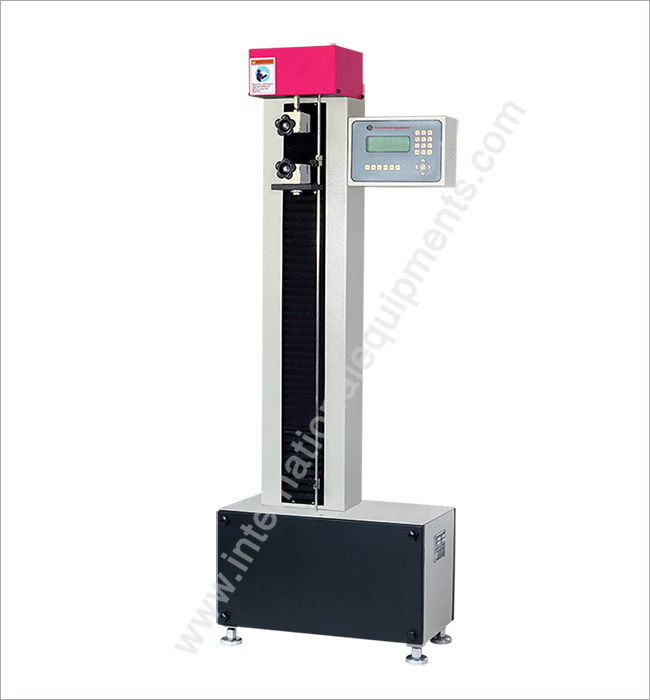

Computerized twin screw universal testing machine to determine properties Of tensile & elongation as per astm d 638 & compression as per astm d 695 with auto stop, auto reverse facility & direct display of result through 32 bit micro controller having 4 lines and 20 character display. this equipment is suitable to check properties of tensile, elongation, flexural (three point bending), compression tests on polymers, compounds, composite materials, fibre reinforced plastics (frp) and polymeric materials.

Specification


  • Load capacity : up to 500 kg*
  • No. of load cell : One.
  • Cross Travel : Up to 1000mm*.
  • Speed : Variable between 10mm/minute to 500mm/minute.
  • Paint : Powder coated.
  • Power : 230 Volts, 50Hz, single phase..
  • • Direct display through microcontroller : Peak load, Break load, Tensile strength at peak, Tensile strength at break, Yield load, Yield Stress, % Elongation at Peak, % Elongation at Break & Young's Modulus..

* Equipment with other capacities could also be supplied as per the requirement.


Unique Features


  • • Highly accurate position control with high range of speed
  • • ur line and 20 characters controller with multiple features
  • • Automatic calculation of modulus @different strains selectable
  • • Multi unit display in Kg, pound, Newton mm, cm, inch selectable
  • • Direct display on controller and numeric printout facility
  • • Safety norms of over load in auto as well as manual mode
  • • Data lock for calibration and master controlled parameters
  • • Safety norms of over travel in auto mode.
  • • Tests preprogramming facility for Tensile, Flexural, Peel, Bond, Compression, Cyclic endurance based on load, travel, time

Universal Testing Machine

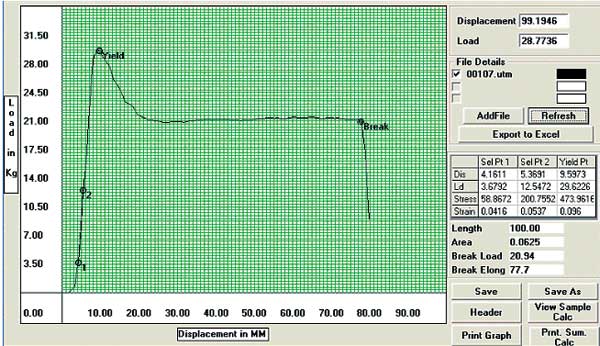

All results such as Peak load, Elongation at Peak load, Break load, Elongation at break load, % elongation at Peak, % elongation at Break, Tensile strength at Peak, Tensile strength at Break, Flexural stress, Compression Strength, Secant Modulus, Tangent Modulus & Flexural Modulus are directly displayedn Microcontroller as well as through PC software
