A pendulum impact tester that measures the notched impact strength of plastics in both Izod and Charpy configurations — available in Computerised (up to 25 J) and Analogue (up to 21.68 J) models.
Impact strength predicts how a rigid plastic survives sudden shocks — a dropped part, a knock on a pipe or panel. A calibrated pendulum is raised to a fixed 150° release angle and swung to strike a notched specimen; the energy absorbed in breaking it is the impact energy, in Joules. The notch concentrates stress for repeatable, comparable results.
International Equipments builds the tester in Computerised and Analogue variants: Izod clamps the specimen vertically as a cantilever (notch facing the strike), while Charpy supports it horizontally at both ends. Both comply with ASTM D256, D6110, ISO 179/180 and IS 13208/13360. Manufactured in Mumbai, CE marked and calibration-certified.
Same standards and pendulum design — the difference is digital reporting versus analogue scale reading.
Microcontroller + PC: up to 25 J (50 J on request), five interchangeable scales, automatic unit conversion, an Impact Energy vs Angular Displacement graph and printable ASTM/ISO/IS reports — for ISO 9001 / NABL labs.

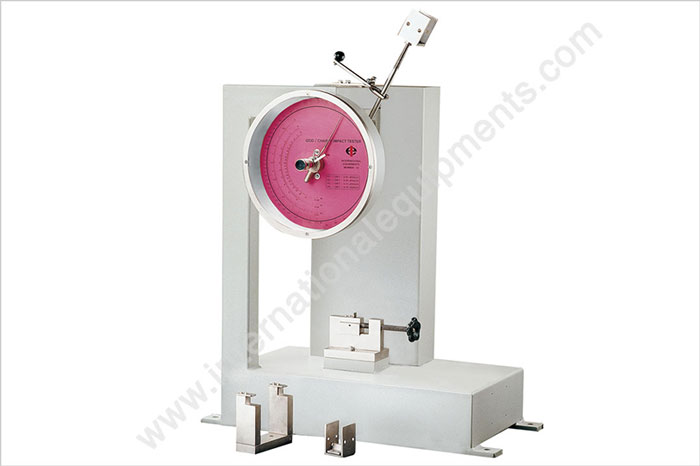

Pendulum-and-pointer tester read directly from a calibrated mechanical scale — the economical choice for small QC labs, polytechnic colleges and ITI institutes.
Computerised model specifications; the Analogue model runs to 21.68 J with a mechanical scale.
| Standards | ASTM D256, D6110; ISO 179, ISO 180; IS 13360 (Part 5/Sec 7), IS 13208 |
|---|---|
| Test method | Both Izod and Charpy supported |
| Capacity | Up to 25.00 J (50 J on request) |
| Release angle of pendulum | 150° |
| Range of scales | 0–2.71, 0–5.42, 0–10.84, 0–21.68, 0–25.00 & 0–50 J |
| Minimum resolution | 0.02, 0.05, 0.1, 0.2 & 0.5 J respectively |
| Microcontroller display | Joules/m, kg-cm/cm, kg-mtr/mtr, J/mm², J/cm² & kJ/m² |
| PC output | Impact Energy vs Angular Displacement graph; ASTM/ISO/IS reports |
| Paint | Powder coated |
| Power | 230 V, 50 Hz, single phase |
A precise notch is essential — we supply both required accessories:
Send your material, test standard and throughput. We'll respond within one business day with a configuration and quote.
