A computerised constant-pressure hydrostatic panel that checks the internal pressure and creep-rupture resistance of HDPE, PVC, PPR and CPVC pipes from 16 mm to 400 mm diameter, per IS 4984 and IS 4985.
Plastic pipes are certified on their ability to withstand sustained internal pressure. Sealed samples are filled with water and held at a constant internal pressure and temperature to check creep rupture under a specified condition, per IS 4984 and IS 4985 — either long-term to establish strength, or at higher pressure for burst testing.

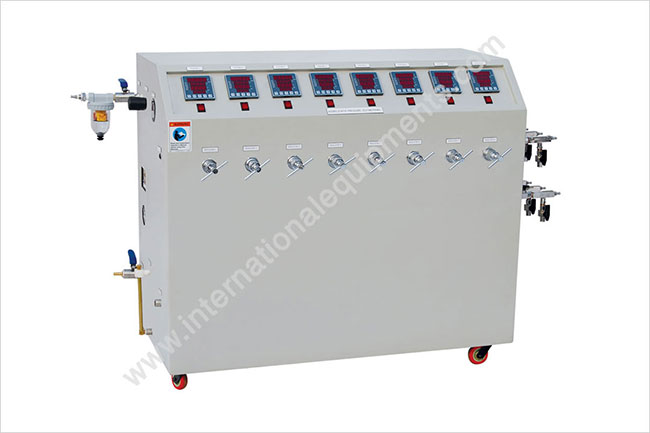

International Equipments builds a computerised panel delivering smooth, stable pressure across 8 stations, with an MMI showing set and actual pressure, time and temperature, and PC graphing per station. It pairs with a temperature-controlled stainless steel tank for water-in-water testing. Manufactured in Mumbai, CE marked and calibration-certified.
Representative specifications; other capacities supplied on request.
| Standards | IS 4984, IS 4985; ISO 1167 |
|---|---|
| Pipes tested | HDPE, PVC, PPR, CPVC — 16 mm to 400 mm diameter |
| Pressure range | 0–100 bar |
| No. of stations | 8 |
| Pressure input | Compressed air up to 5 kg/cm² |
| Pressure output | Hydro-pneumatic pump |
| Time range | 0–999.9 hours |
| Display (MMI) | Set/actual pressure, time & temperature |

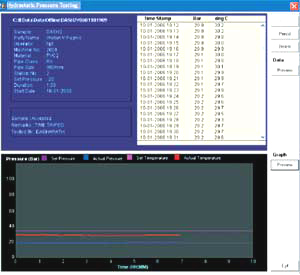

| PC output | Pressure & temperature vs time graph and printout per station |
| Mounting | Trolley with castor wheels |
| Paint | Powder coated |
| Power | 230 V, 50 Hz, single phase |
Send your material, test standard and throughput. We'll respond within one business day with a configuration and quote.
