A falling-dart impact tester that determines the impact failure weight of plastic films and sheeting by the free-falling dart method, to ASTM D1709 and IS 2508.
Dart impact is the standard toughness test for plastic film. A weighted dart is dropped onto a clamped film specimen; by raising or lowering the weight in steps the tester finds the weight at which 50% of specimens fail — the film impact failure weight.

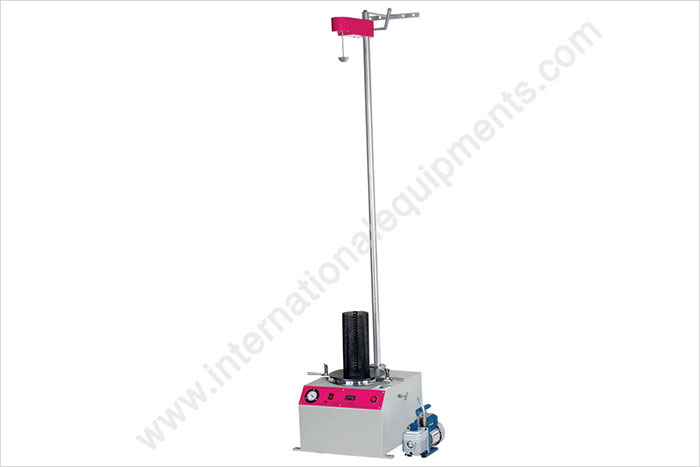

International Equipments builds a dart impact tester to ASTM D1709 and IS 2508, with an electromagnetic dart release, vacuum clamping of the specimen and a graduated 5–500 g weight set. Manufactured in Mumbai, CE marked and calibration-certified.
Representative specifications; configuration on request.
| Standards | ASTM D1709, IS 2508 |
|---|---|
| Method | Free-falling dart |
| Dart | 2 nos. |
| Release mechanism | Electromagnetic |
| Specimen clamping | Vacuum (single-stage oil vacuum pump) |
| Weights | 5 g to 500 g, incremental set |
| Paint | Powder coated |
| Power | 230 V, 50 Hz, single phase |
Send your material, test standard and throughput. We'll respond within one business day with a configuration and quote.
