A motorized notch cutter that machines a precise 45° V-notch in Izod and Charpy impact specimens — with a Mitutoyo depth micrometer for accurate, repeatable notch depth.
Izod and Charpy impact results are extremely sensitive to the notch — its depth, angle and tip radius control where the specimen fractures. Hand-notching introduces scatter that can invalidate a whole set of results, so the notch is machined to a defined 45° geometry.
International Equipments builds the notch cutter with a Mitutoyo depth micrometer (0–25 mm, 0.01 mm least count) for accurate depth setting, in a Standard model and a Variable-Speed model with a Vector-Controlled Variable Speed Drive. Manufactured in Mumbai, CE marked and calibration-certified.
Same 45° notch geometry and Mitutoyo depth micrometer — the difference is cutting-speed control.
Standard model with a Mitutoyo depth micrometer (0–25 mm, 0.01 mm least count) and a 45° cutting angle — for a precise, repeatable V-notch.

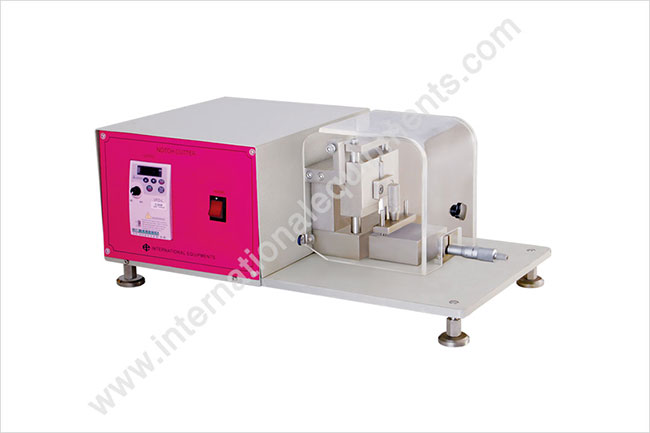

Adds a 1440 rpm motor with a Vector-Controlled Variable Speed Drive to adjust cutting speed, plus an acrylic safety jacket.
Standard-model specifications; the Variable-Speed model adds a 1440 rpm VFD drive and acrylic safety jacket.
| Standards | ASTM D256, D6110; ISO 179, ISO 180 |
|---|---|
| Function | 'V' notch in Izod / Charpy specimens |
| Depth micrometer | Mitutoyo make — range 0–25 mm, least count 0.01 mm |
| Cutting angle | 45° |
| Variable-speed model | 1440 rpm motor with Vector-Controlled Variable Speed Drive; acrylic safety jacket |
| Paint | Powder coated |
| Power | 230 V, 50 Hz, single phase |
