Testing Equipment / Instrument / Machines for Plastics



  Melt Flow Index Tester
as per ASTM D – 1238 to measure the flow rates of thermoplastics by
  extrusion plastometer. This test indicates the uniformity of  the flow rate of the polymer.



Melt Flow Index Tester (KAYJAY/2006/AC)
  ENLARGE VIEW

Melt Flow Index Tester
(KAYJAY/2006/AC)

Specification:
Temperature controller:
Micro processor based PID controller
with temperature range from ambient
to 400ºC, resolution of 0.1ºC and
accuracy of + 0.1ºC.
Timer : Digital presettable with a range
up to 59 minutes, 59 seconds.
Sample cutting: Auto [Motorized]
Weights : 1.2 kg, 2.16 kg, 3.8 kg,
5 kg & 21.6 kg.
Accessories : Standard accessories*.
Paint :
Powder coated.
Power : 230 Volts, 50 Hz, single phase
.


 DOWNLOAD CATALOGUE

Melt Flow Index Tester (KAYJAY/1994/L)


Specification:

Temperature controller : Micro processor based
PID controller with temperature range from
ambient to 375ºC, resolution of 0.1ºC and
accuracy of + 0.1ºC.
Timer : Digital presettable with a range up to
59 minutes, 59 seconds and having buzzer output.
Sample cutting : Manual.
Weights: 1.2 kg, 2.16 kg, 3.8 kg, 5 kg &  21.6 kg.
Accessories : Standard accessories*.
Paint : Powder coated.
Power : 230 Volts, 50 Hz, single phase.

 DOWNLOAD CATALOGUE

Melt Flow Index Tester (KAYJAY/1994/L)
  ENLARGE VIEW

Melt Flow Index Tester (KAYJAY/2005/CE)
  ENLARGE VIEW


Melt Flow Index Tester (KAYJAY/2005/CE)


Specification:

 Temperature controller: Micro processor based auto tuned PID controller with temperature range from ambient to 400ºC, resolution of 0.1ºC and accuracy of + 0.1ºC.
Timer : Digital presettable with a range up to 999 seconds and having buzzer output.
Sample cutting : Manual.
Weights : 2.16 kg & 5 kg.
Accessories : Standard accessories*.
Paint : Powder coated.
Power : 230 Volts, 50 Hz, single phase.

Standard accessories includes Orifice, Piston, Spoon, Spanner, Plumb line, Funnel, Material charger, Mirror, Tweezer, Orifice cleaner, Barrel cleaner, Sample cutter and Accessory stand.



----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
| Melt Flow Index Tester | Universal Testing Machine | Tensile Testing Machine | Izod / Charpy
Impact Tester | Motorized Notch Cutter | VSP / HDT Apparatus | E.S.C.R. Apparatus |
Dart Impact Tester | C.O.F. Tester | Peel Tester | Opacity Tester | Humidity Chamber |

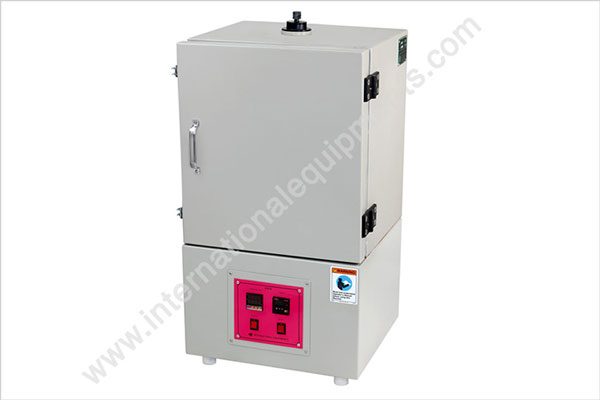

Hot Air Oven | Muffle Furnace | Hydrostatic Pressure Testing Equipment | Carbon Black Content
