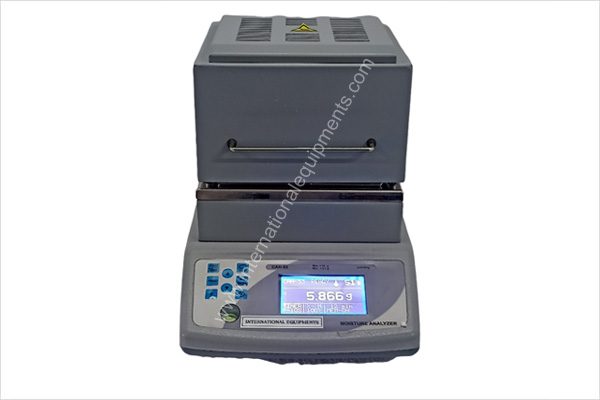

A halogen moisture analyser that measures the moisture content of plastic resins and granules by loss-on-drying — infrared halogen heating with EMFC weighing, reading percentage moisture directly.
Hygroscopic resins such as nylon, PET and polycarbonate absorb moisture that, if not removed before processing, causes splay, voids, bubbles and weak parts. A moisture analyser measures the moisture content directly so operators know whether resin is dry enough to run.
International Equipments builds a halogen moisture analyser that heats a sample with an infrared halogen tube while an EMFC balance tracks weight loss, reporting the moisture percentage in minutes on an LCD, with 50-test storage and an RS232 interface. Manufactured in Mumbai, CE marked and calibration-certified.
Representative specifications; configuration on request.
| Method | Loss-on-drying (infrared halogen heating) |
|---|---|
| Capacity | 0–50 g |
| Resolution | 0.001 g |
| Pan size | 100 mm |
| Response time | 4 to 6 seconds |
| Weighing technology | EMFC |
| Moisture content resolution | 0.1% |
| Moisture content accuracy | +/-0.5% |
| Temperature range | Up to 200 °C |
| Temperature resolution | 1 °C |
| Display | LCD — time, temperature, weight & % moisture |
| Data storage | Up to 50 tests |
| Interface | RS232 for computer |
| Power | 230 V, 50 Hz, single phase |
Send your material, test standard and throughput. We'll respond within one business day with a configuration and quote.
Request a Quote
