A digital micro-meter jig that measures the depth of the 'V' notch machined by the Motorized Notch Cutter — verifying notch-depth accuracy for valid Izod and Charpy impact tests, per ASTM D256 and D6110.
Izod and Charpy impact results depend on a precise notch — a notch that is too deep or too shallow shifts the result. After the notch is cut, its depth must be verified, and that is what this jig does.

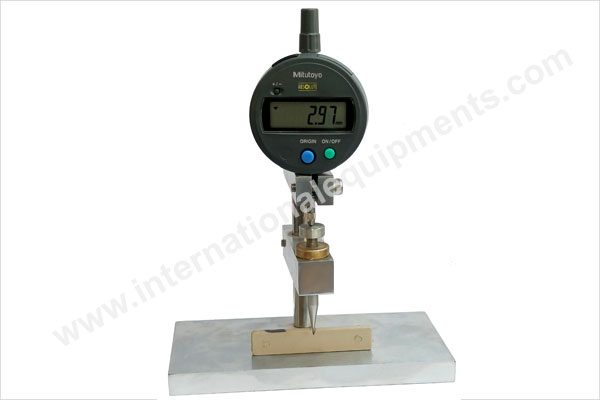

International Equipments builds a micro-meter jig with a Mitutoyo digital gauge (up to 12.50 mm, 0.01 mm resolution) and a depth-measurement range of 0.00–3.00 mm, on a nickel-chrome-plated base. It pairs with the Motorized Notch Cutter and the Izod/Charpy tester. Manufactured in Mumbai.
Representative specifications; configuration on request.
| Function | Measure depth of the 'V' notch |
|---|---|
| Standards | ASTM D256, D6110 |
| Display | Digital |
| Gauge | Mitutoyo make — range up to 12.50 mm, resolution 0.01 mm |
| Size of base | 150 mm × 100 mm |
| Range of depth measurement | 0.00 to 3.00 mm |
| Plating | Electroless nickel chrome |
| Power | Battery operated |
